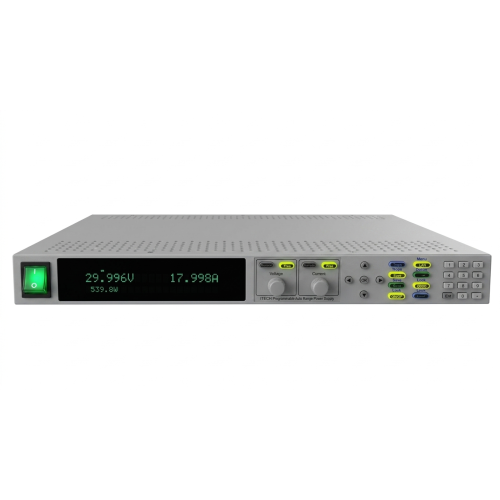

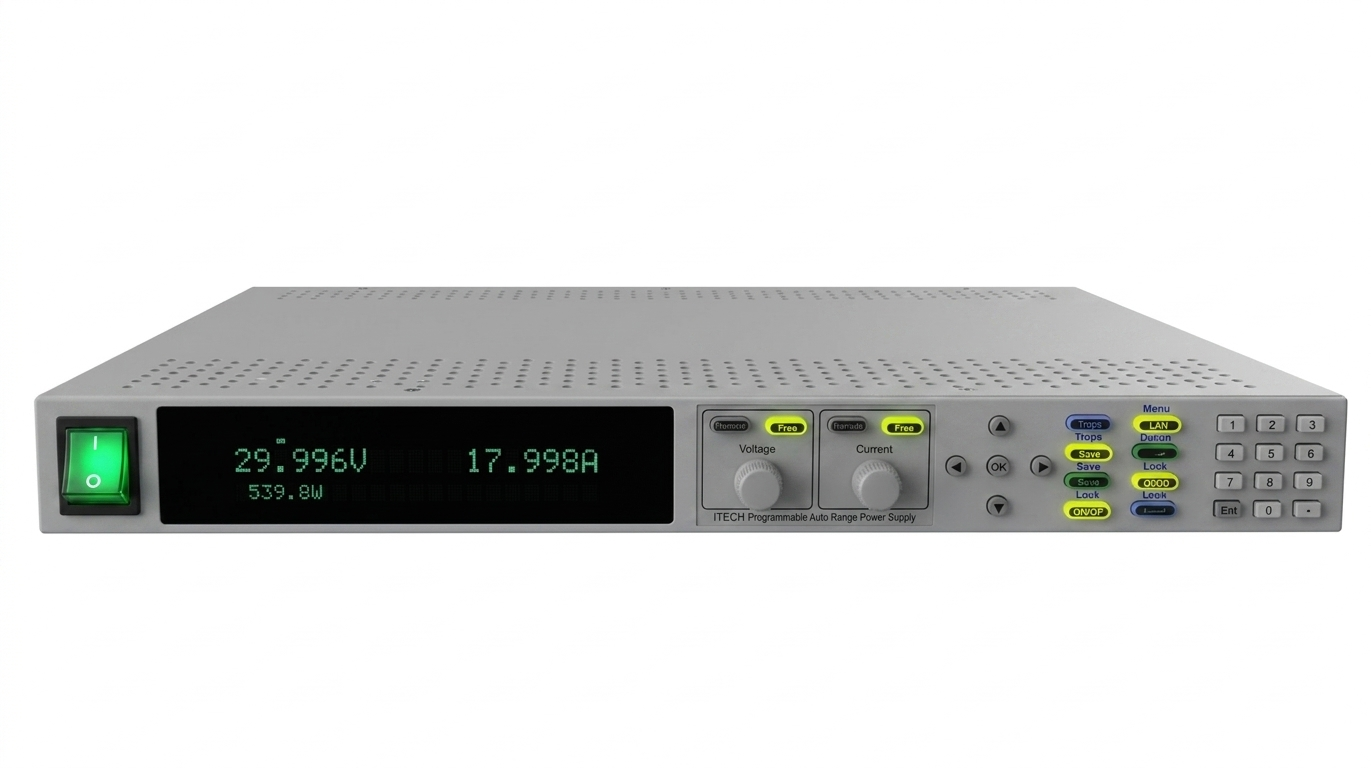

ספק כוח פלט DC ניתן לתכנות

Item

Parameter

SDP220S80M800

SDP220S80M1200

Rated Range (0°C – 40°C)

Output Voltage

0～80V

0～80V

Output Current

0～60A

0～60A

Output Power

0～800W

0～1200W

Line Regulation: ±(% of Output + Offset)

Voltage

≤0.01%+8 mV

≤0.01%+8 mV

Current

≤ 0.1%+10mA

≤0.1%+10mA

Load Regulation   ±(% of Output + Offset)

Voltage

≤0.0 2%+ 2 mV

≤0.0 2%+2 mV

Current

≤0.0 2%+ 2 mA

≤0.0 2%+2 mA

Setpoint Resolution

Voltage

10mV

10mV

Current

10mA

10mA

Readback Resolution

Voltage

10mV

10mV

Current

10mA

10mA

Ripple (20 Hz – 20 MHz)

Voltage

≤80mVp- p

≤80mVp-p

Current

≤0.05%+60mArms

≤0.05%+60mArms

Rise Time (No Load)

Voltage

≤30ms

≤30ms

Rise Time (Full Load)

Voltage

≤30ms

≤30ms

Fall Time (No Load)

Voltage

≤200ms

≤200ms

Fall Time (Full Load)

Voltage

≤40ms

≤40ms

Dynamic Response Time

Voltage

≤3ms

≤3ms

AC Input

Voltage

220Vac±10%

220Vac±10%

Frequency

47Hz～63Hz

47Hz～63Hz

Efficiency

80%

Sense Compensation Voltage

3V

Programming Response Time

20mS

Power Factor

0.99

Max. Input Current

6.5A/

Max. Input Apparent Power

1000VA/

Storage Temperature

-10℃～70℃

Operating Temperature

0～40℃

Protection Functions

OVP, OCP, OPP, OTP, and Vsense Reverse Polarity Protection

Communication Interface

USB/RS232/CAN/GPIB/LAN

Withstand Voltage (Output to Ground)

500V

Number of Units in Series

≤2 Pcs

Number of Units in Parallel

≤8 Pcs

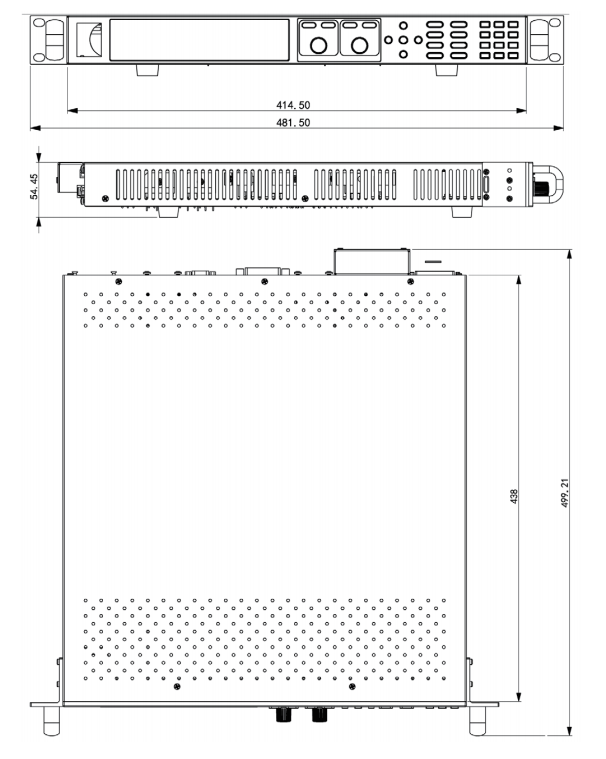

Dimensions (mm)

415（W）×44（H）×500（D）

Weight (kg)

8.5
